JBL Base Plate for SRX906LA Line Array Speaker

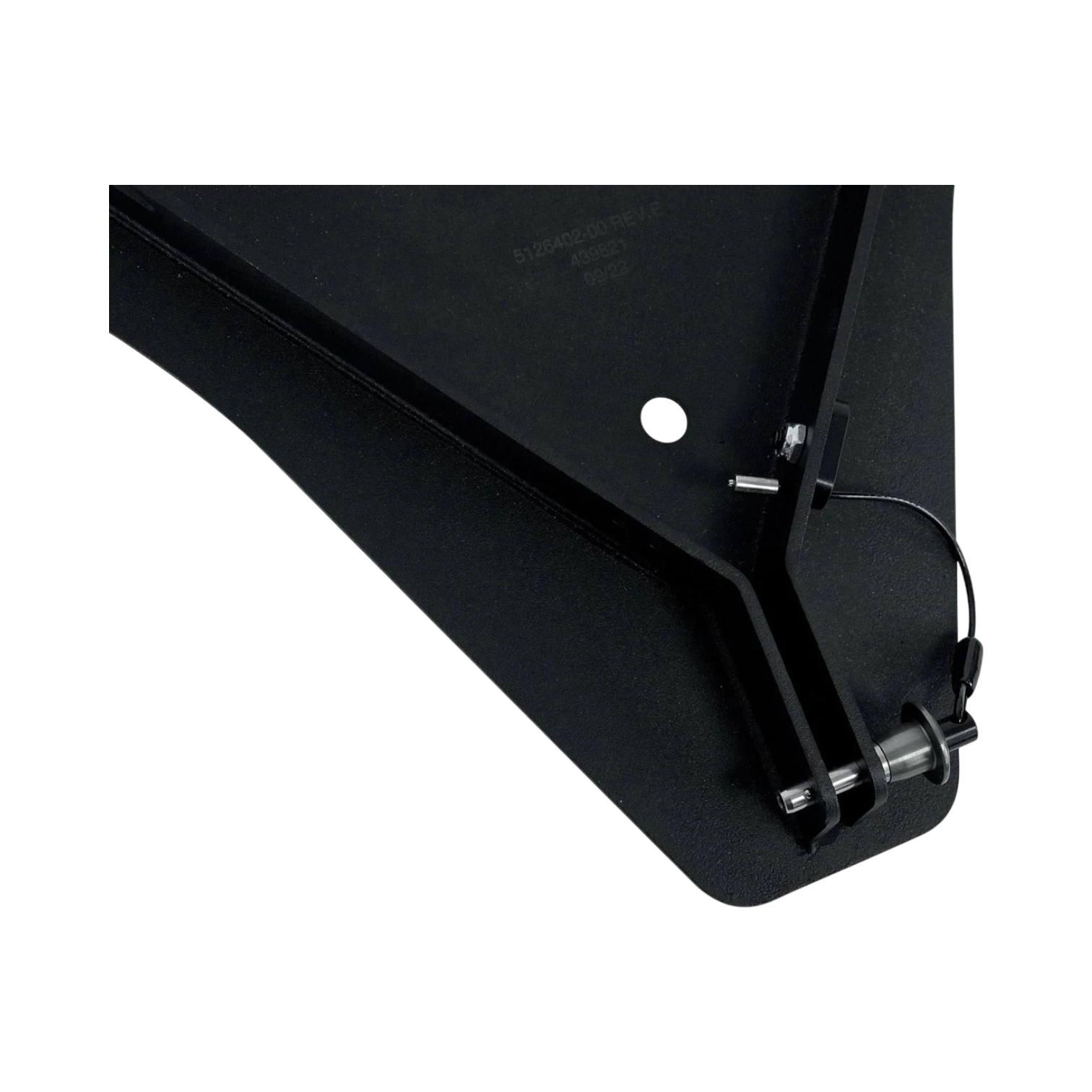

The JBL JBL-P3233MX is a base plate created for the SRX906LA line array loudspeaker, giving the cabinet a secure platform for ground stacking or a dependable anchor point in a permanent install.

The plate uses high grade steel, so it stands up to the demands of touring crews, rental companies, and venues that need gear to work every night. An M20 threaded insert at the center links directly to compatible subwoofers such as the SRX918S or SRX928S, making it simple to build a tidy vertical array that can be set up or torn down in minutes.

A rear angle selection bar allows precise aiming from minus 15 to plus 5 degrees, letting system techs focus coverage exactly where it is needed. When the design calls for a fixed rig, three M10 through holes accept standard hardware to bolt the plate to a stage deck, truss, or scaffold.

If pole mounting is preferred, adding the optional JBL pole mount adapter enables the plate to support up to two SRX906LA cabinets. This flexibility makes the JBL-P3233MX a practical choice for clubs, houses of worship, corporate events, or any application that benefits from a compact line array. System designers can verify load limits and coverage with JBL Line Array Calculator 3 before the rig goes live.

• Base plate built with high grade steel for rugged reliability
• M20 threaded pole mount integrates with SRX918S or SRX928S subwoofers
• Rear angle selection from minus 15 to plus 5 degrees for accurate coverage
• Three M10 through holes allow secure permanent mounting to stages or scaffolding
• Supports up to two SRX906LA cabinets when used with the optional pole mount adapter
